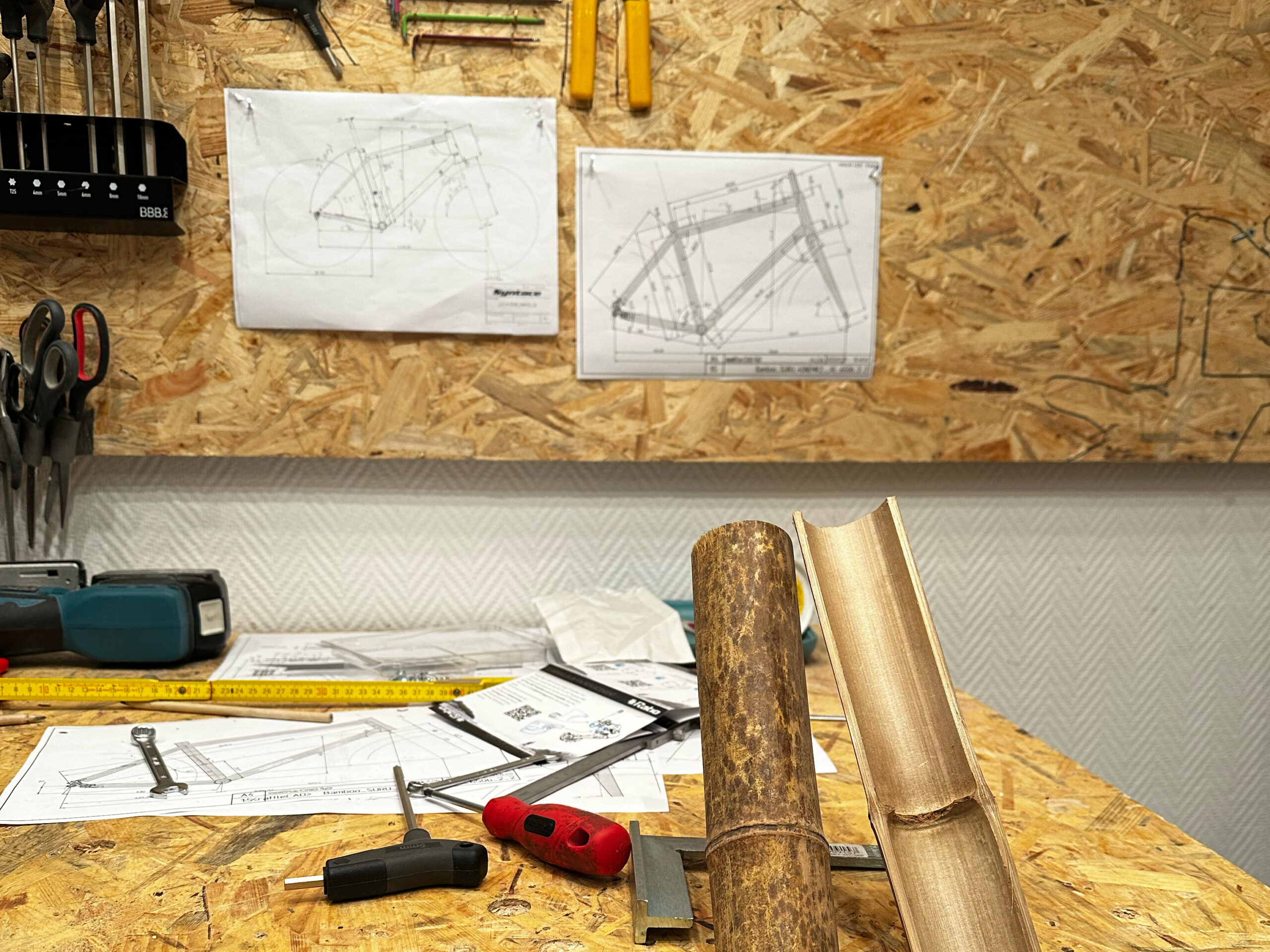

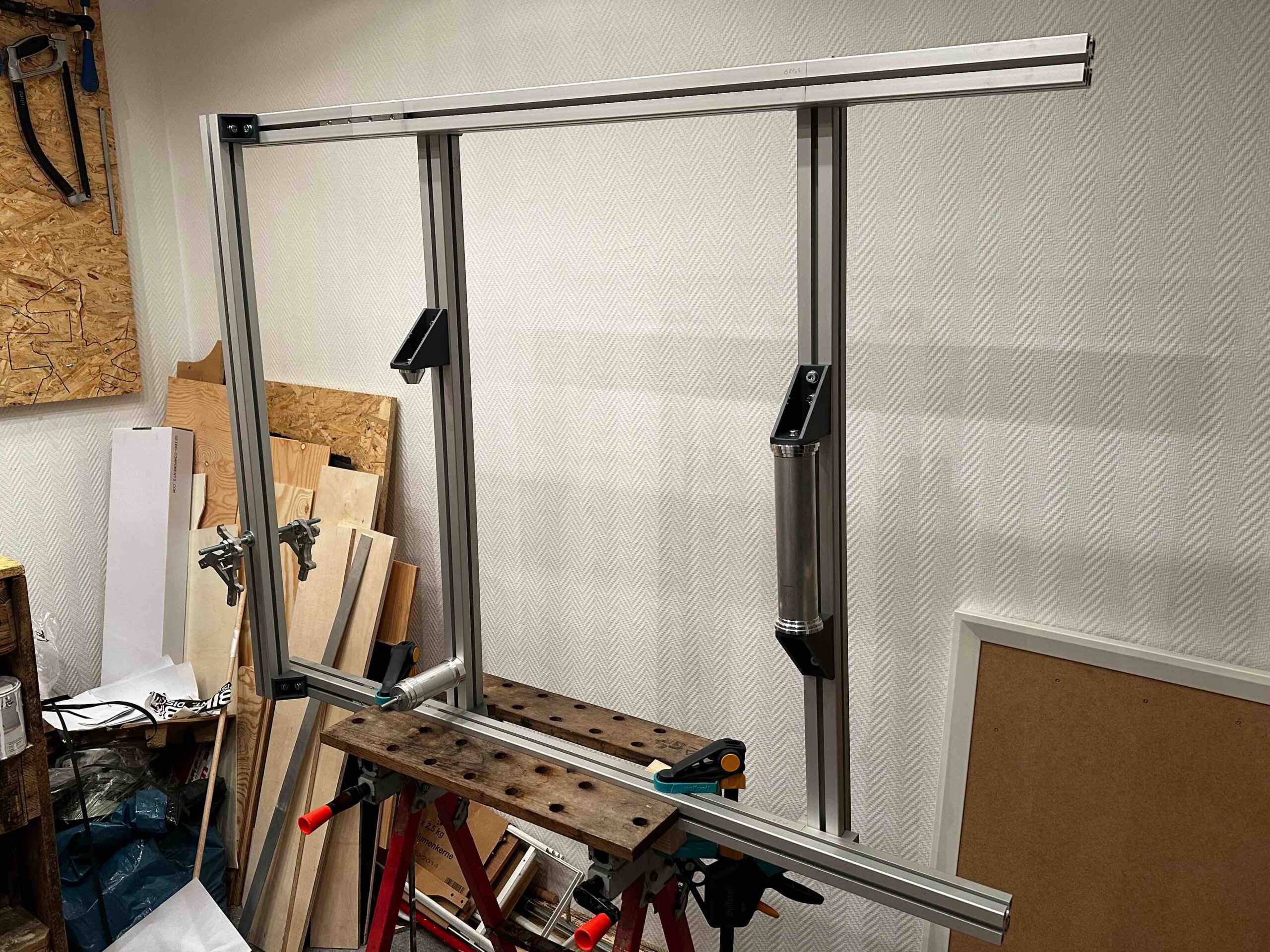

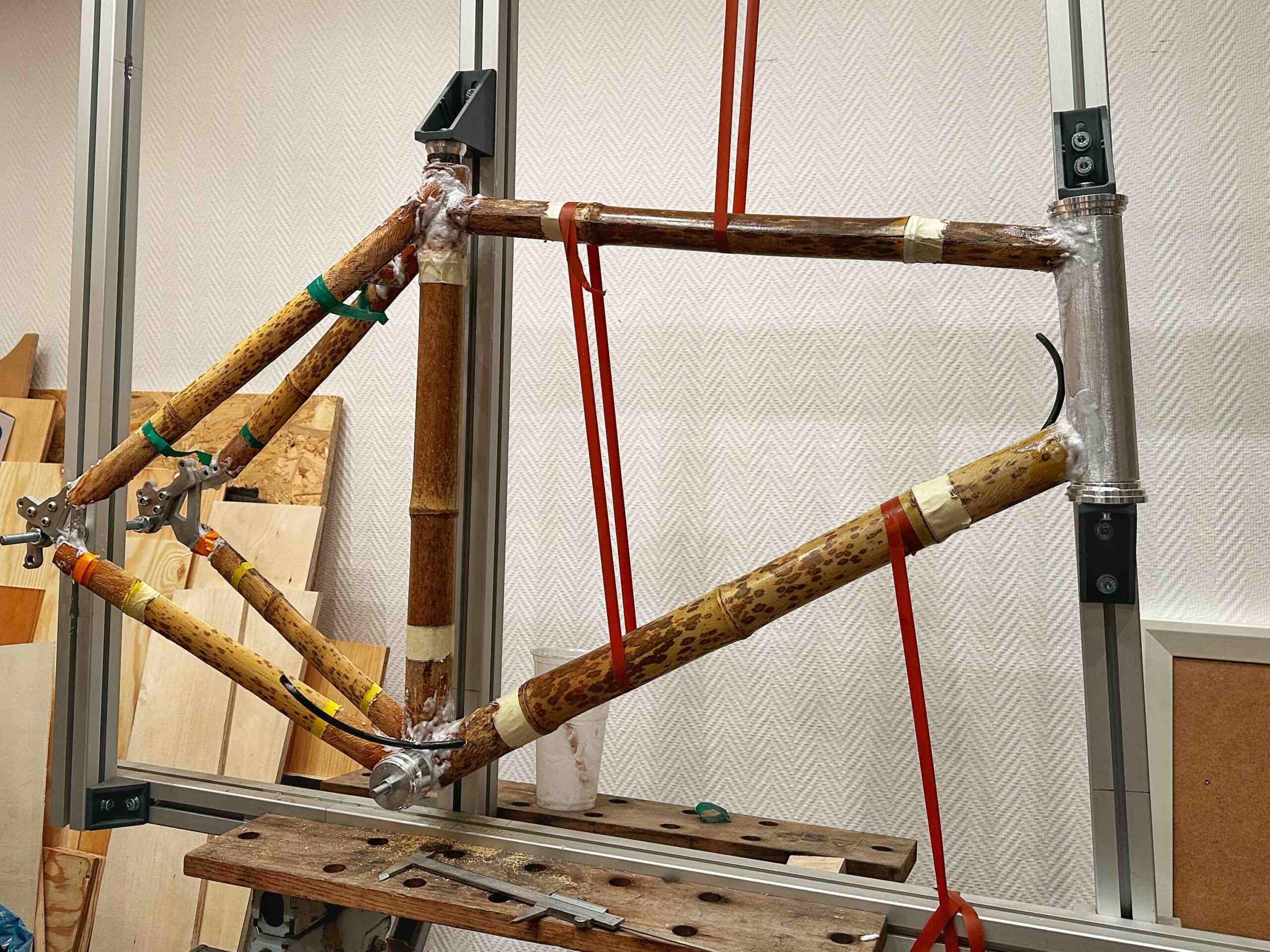

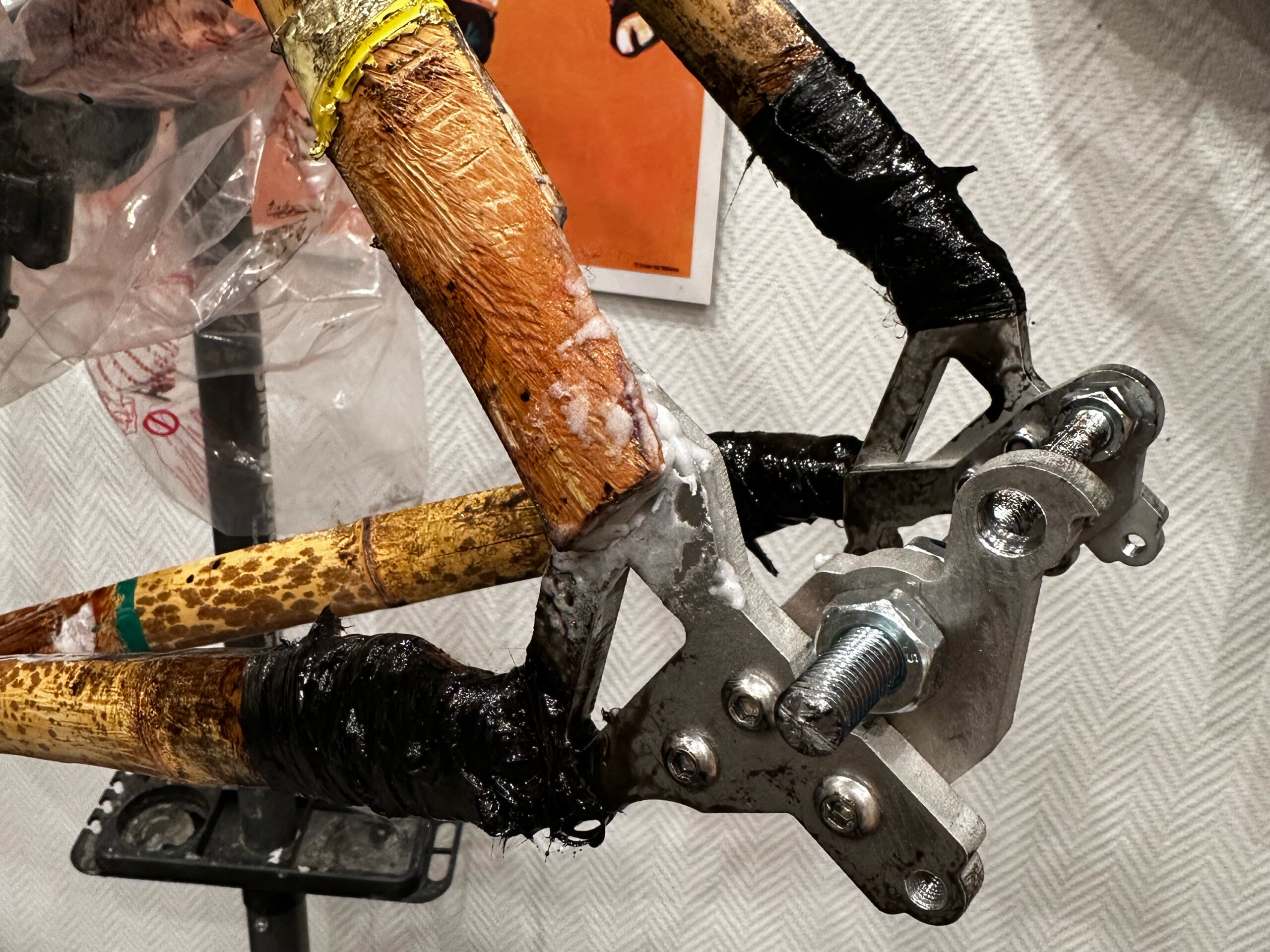

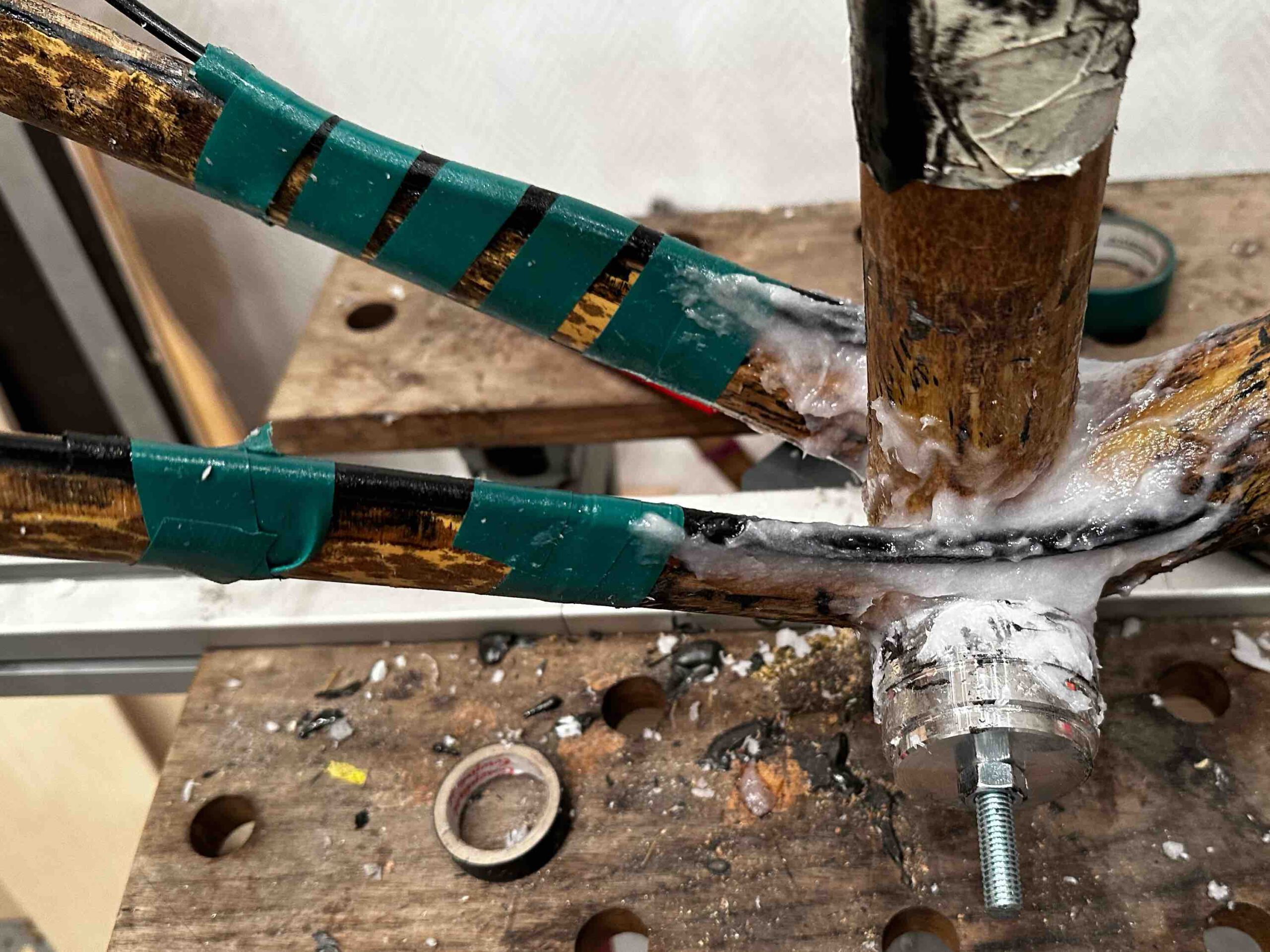

From raw to finished.
Take a look inside the different steps.
BIKES THAT I BUILT SO FAR
FAT BIKE - SINGLE SPEED - GRAVEL BIKE
The Ultimate Gravel Bike.
The perfect mix between, mountain bike, road bike and touring bike.
Specification

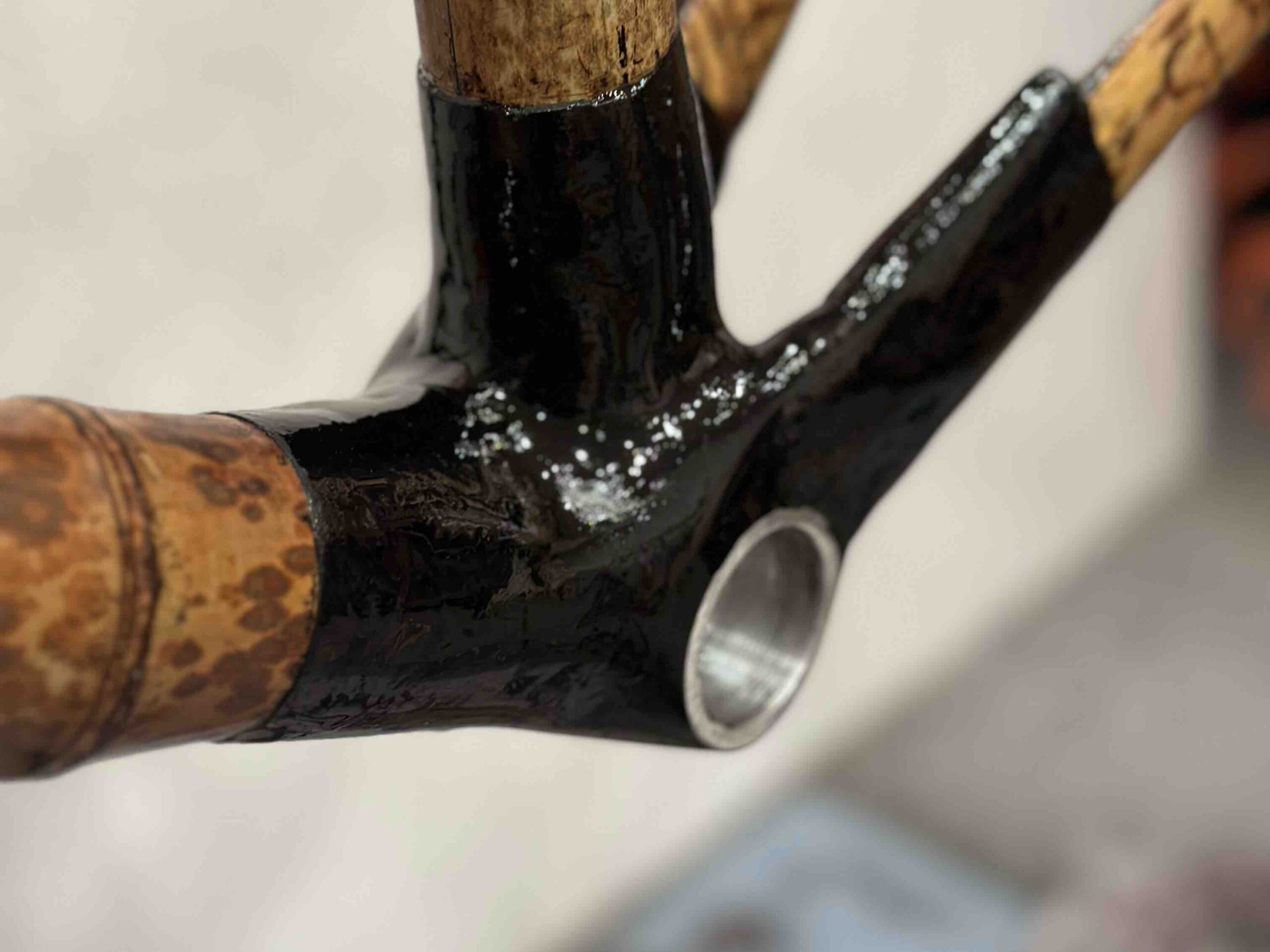

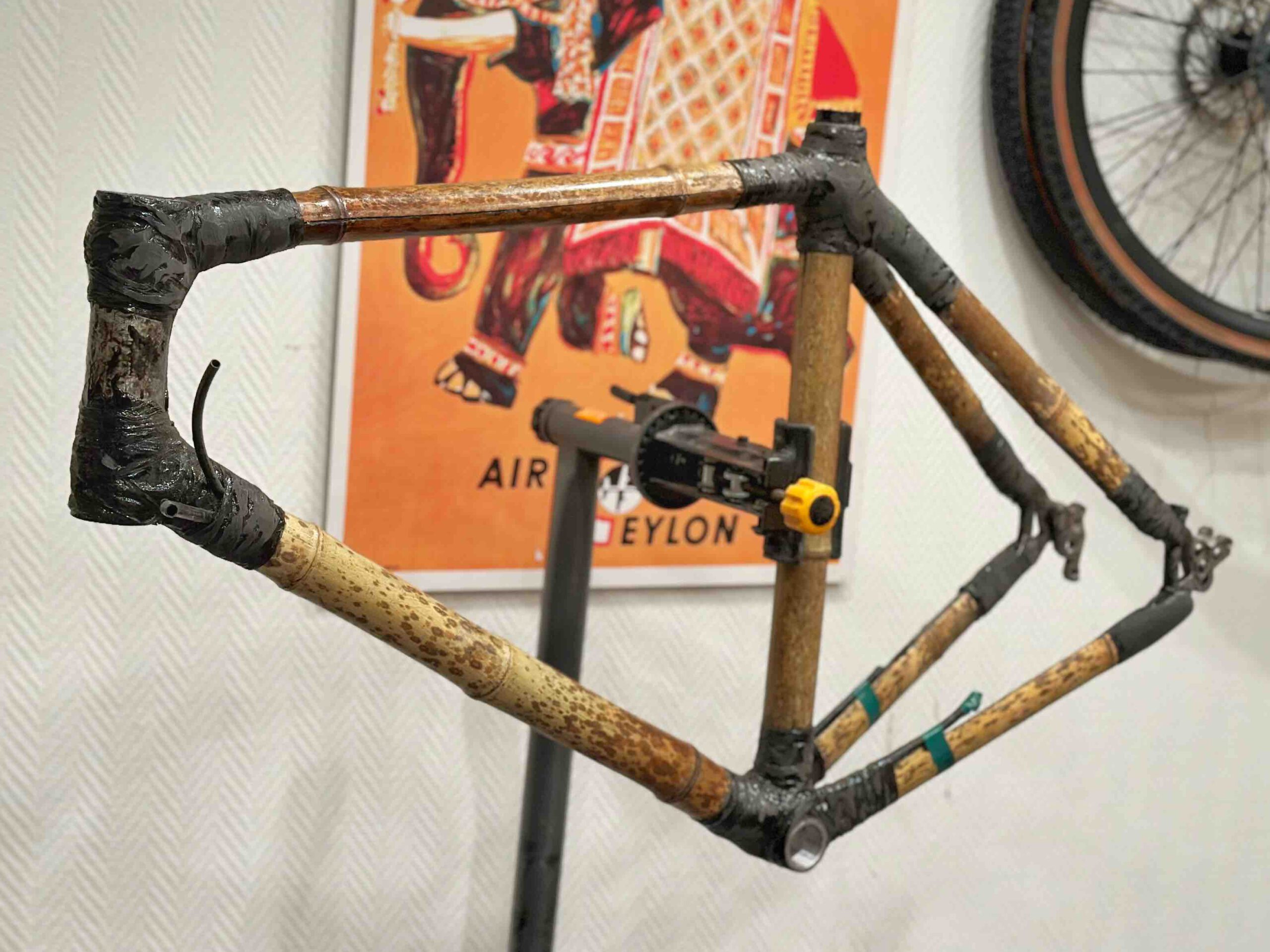

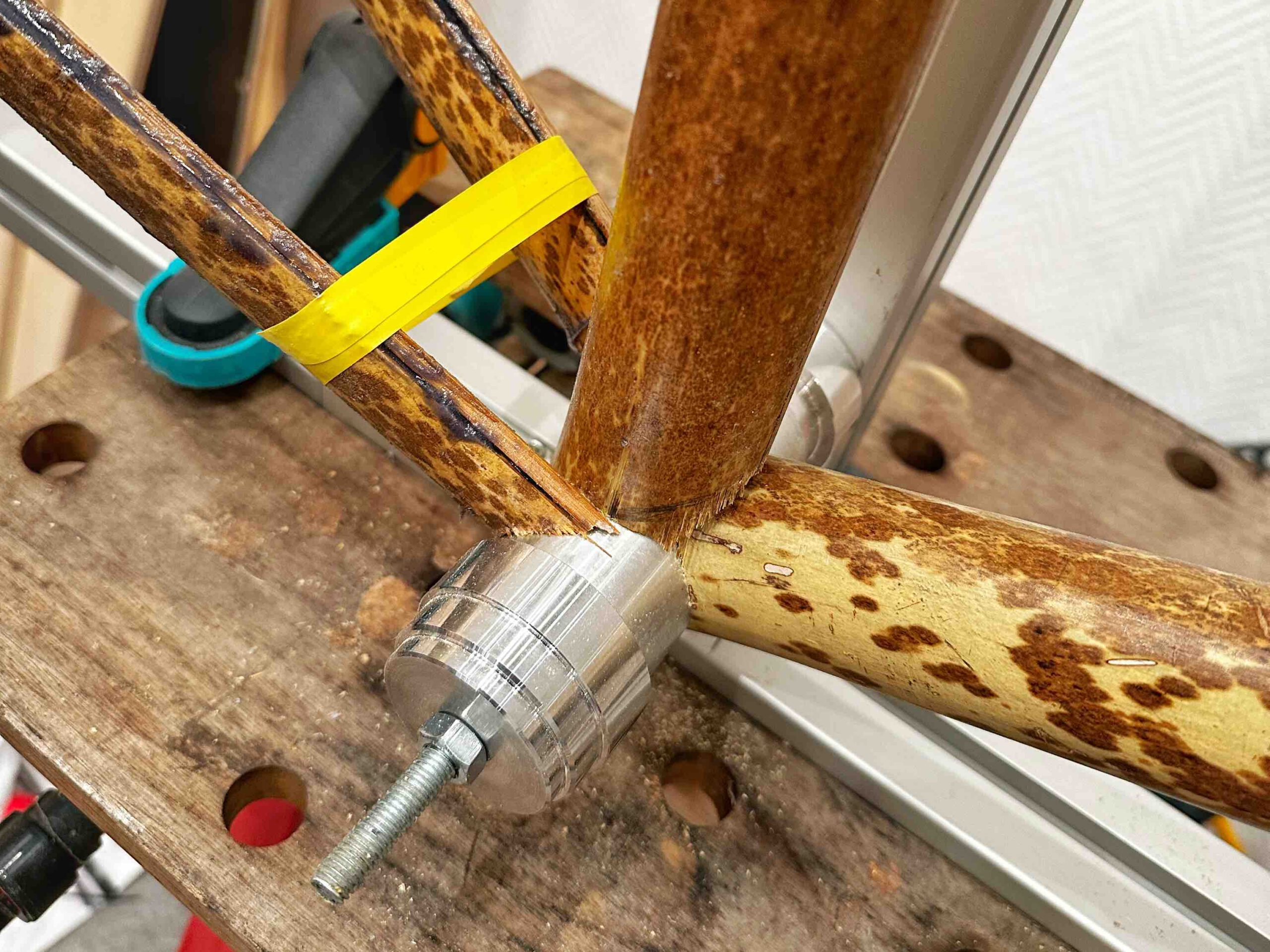

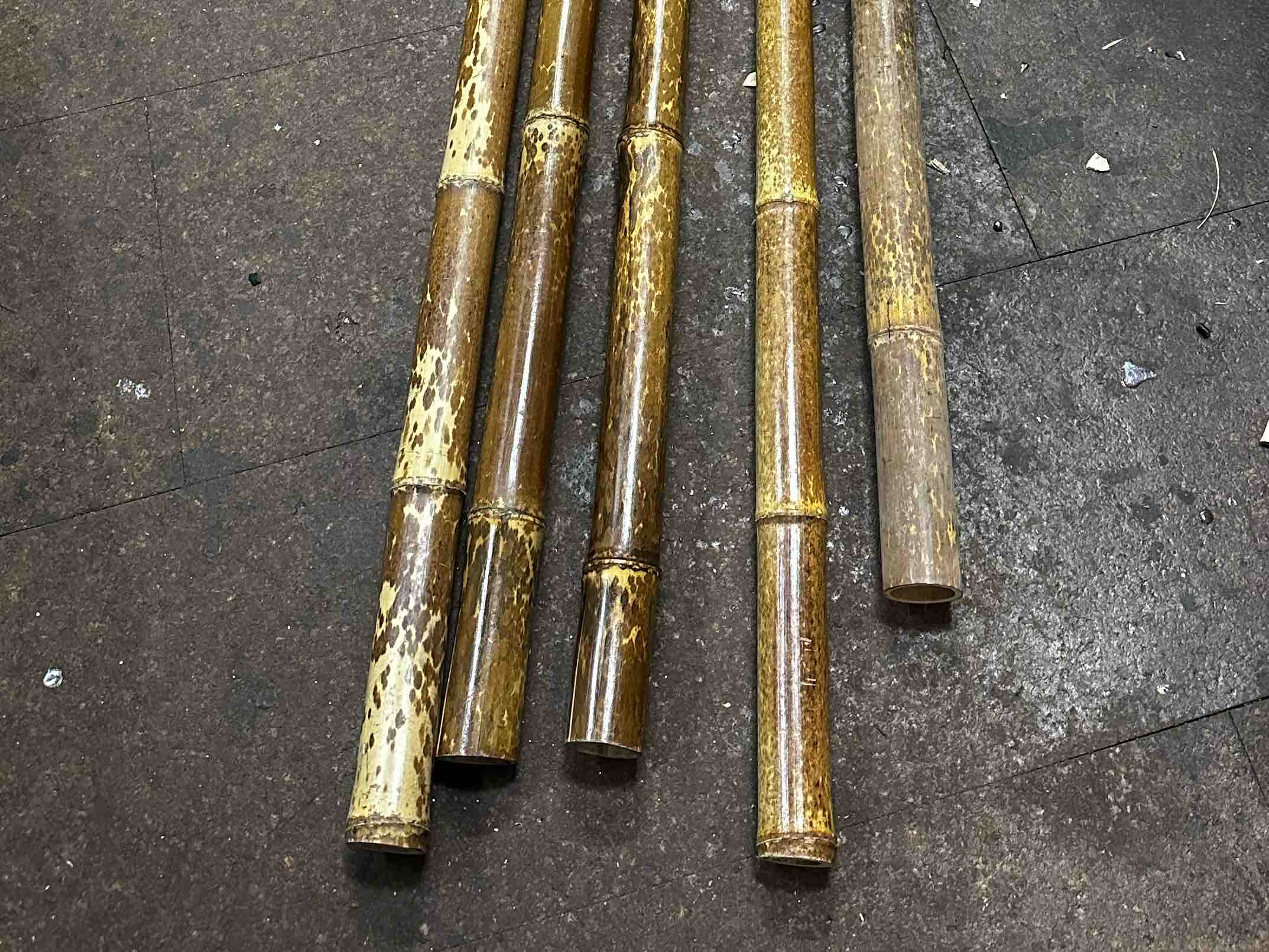

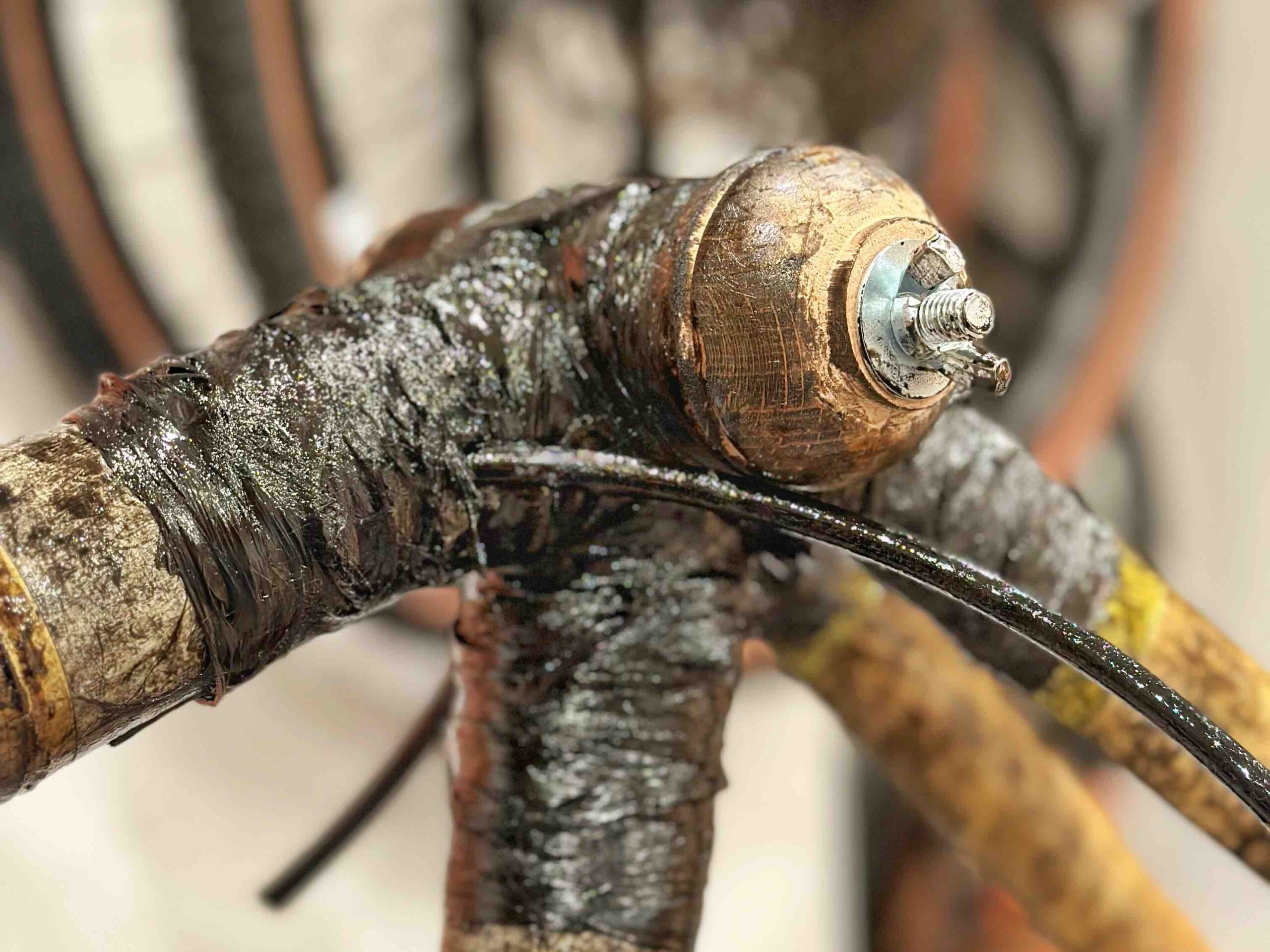

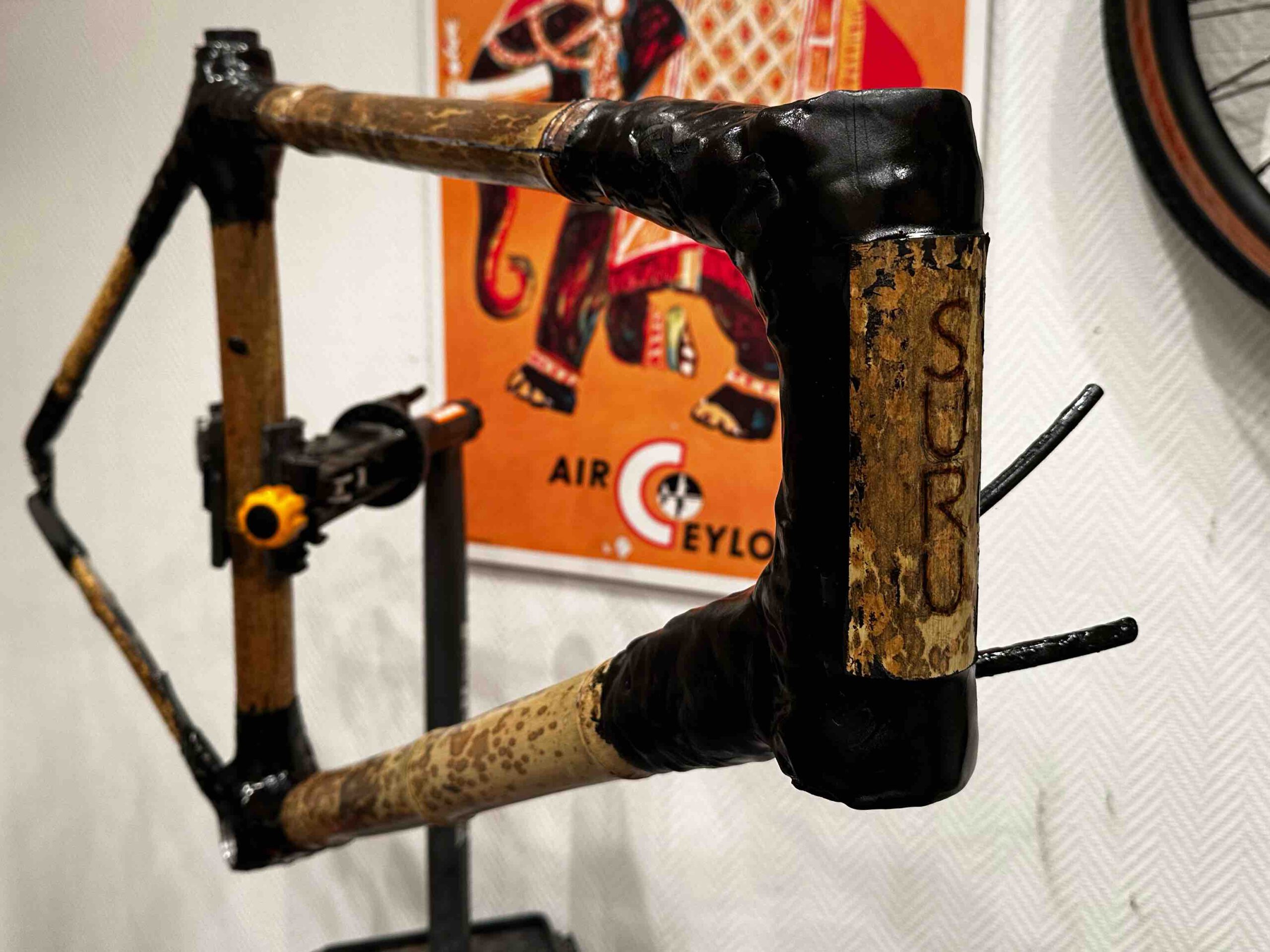

- Frame: Bamboo – Carbon Fiber & Epox resin
- Wheelset: DT Swiss G 1800 SPLINE 25 – 27.5″ – 12x100mm | 12x142mm
- Tires: WTB Resolute 42 TCS Light Fast Rolling – 42-584
- Fork: SEIDO MGV Carbon 27,5″ / 29″ tapered
- Handelbar: WCS Beacon XL – 31.8 Gravel
- Brake: SRAM Force Hydraulic Disc
- 12-speed adapter: Ratio Technology
- Shifter: SRAM GX Eagle 12-Speed – 52T
- Crankset: SRAM GX 32T + 175mm Crank length
- Cassette: SRAM EAGLE GX 52
Max. tire width: 58 – 622 (29″ x 2,25″) / 64 – 584 (27,5″ x 2,5″)
Frame geometry XL (mm)
- Reach: 410
- Slack: 634
- BB Drop: 70
- Seat tube length: 536
- Seat tube angle: 73°
- Head tube angle: 69,5°
- Chainestay length: 440
- Wheelbase: 1111
